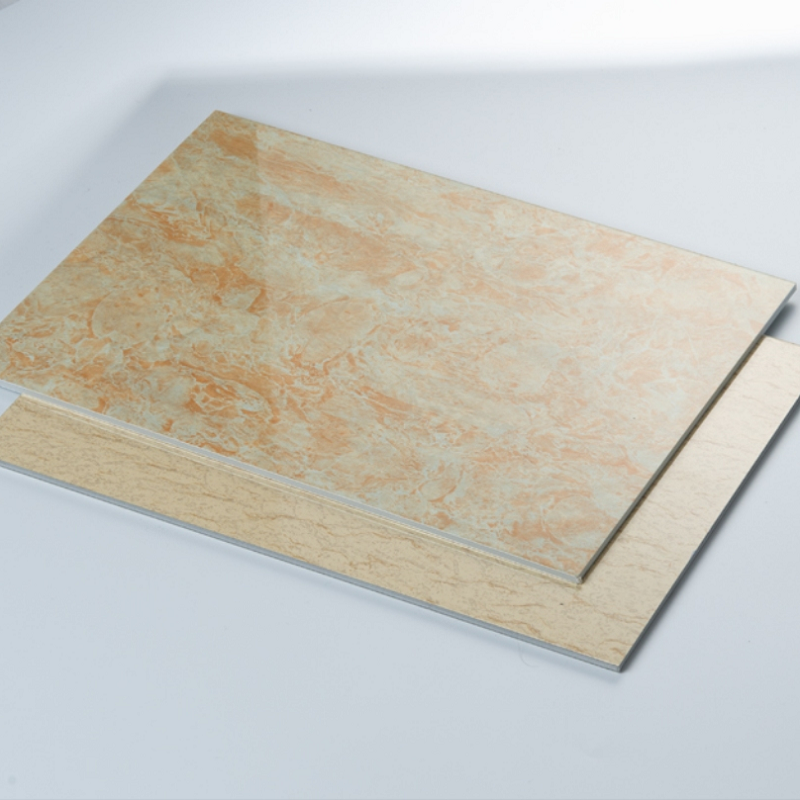

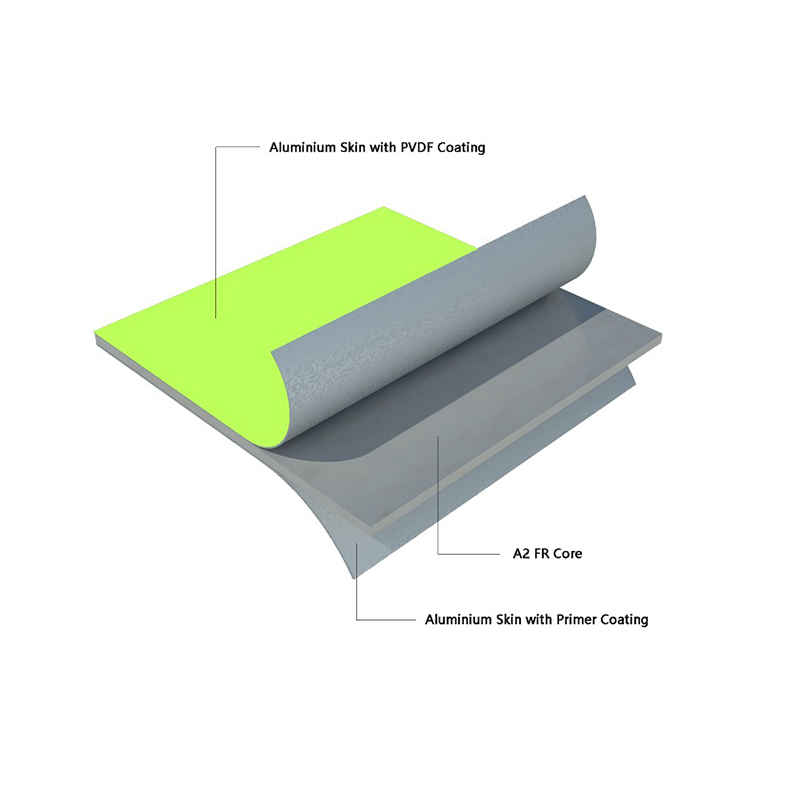

The A2 FR Fire Resistant Aluminum Panel is a cutting-edge composite material engineered to meet the most stringent fire safety standards while delivering exceptional durability and design flexibility. Manufactured with a core composed of new non-combustible natural inorganic mineral material , this panel offers superior fire resistance, making it an ideal choice for commercial, residential, and public infrastructure projects. With specifications including widths of 1220mm, 1500mm, and 2000mm, a maximum length of 11800mm, and thickness options of 4mm, 5mm, or 6mm, the panel is designed to accommodate diverse architectural requirements . The aluminum skin, crafted from AA3003H24 alloy with a thickness of 0.50mm, ensures structural integrity and corrosion resistance, while surface coatings such as PVDF, FEVE, or NANO provide long-lasting protection against environmental factors .
Compliant with international fire safety standards like GB 8624 and EN 13501-1:2007 , the A2 FR panel achieves an A2 fire rating, confirming its non-combustible properties and low heat release under fire conditions. This rating is critical for high-rise buildings, where regulations often mandate the use of A grade materials .
| Width | 1220mm, 1500mm, 2000mm |
| Max. Length | 11800mm |
| Panel Thickness | 4mm , 5mm ,6mm |
| Alu.Skin Thickness | 0.50mm |
| Alloy | AA3003H24 |
| Surface Coating | PVDF/FEVE/NANO coating |
| Colors | Regular color chart options, accept RAL, Pantone color code |
| Others | Accept custom sizes and colors . |
| Core Components | New Non-combustible Natural Inorganic Mineral Materia |
| Core Thickness | 3-5mm |
| Core Density | 1.9kg/m²·mm |
| Calorific Value | ≤3MJ/kg |
| Fire Growth Rate | ≤120(FIGRA), W/s |
| Total Heat Release in 600s | ≤7.5(THR600s), MJ |
The panel's core material, a proprietary blend of inorganic minerals, demonstrates outstanding fire resistance with a calorific value ≤3MJ/kg and a fire growth rate (FIGRA) ≤120W/s . During combustion tests, it releases ≤7.5MJ of total heat within 600 seconds (THR600s), significantly lower than combustible alternatives . This performance ensures minimal flame spread and smoke generation, providing occupants with crucial evacuation time and reducing fire-related damage.
Constructed with AA3003H24 aluminum skins, the panel offers high tensile strength and resistance to corrosion, ensuring longevity in harsh environments. The bonding between the aluminum layers and the mineral core is rigorously tested for peel strength, ensuring structural stability even under extreme temperature fluctuations (tested from -40°C to 80°C over 50 cycles) . This durability makes it suitable for both interior and exterior applications.

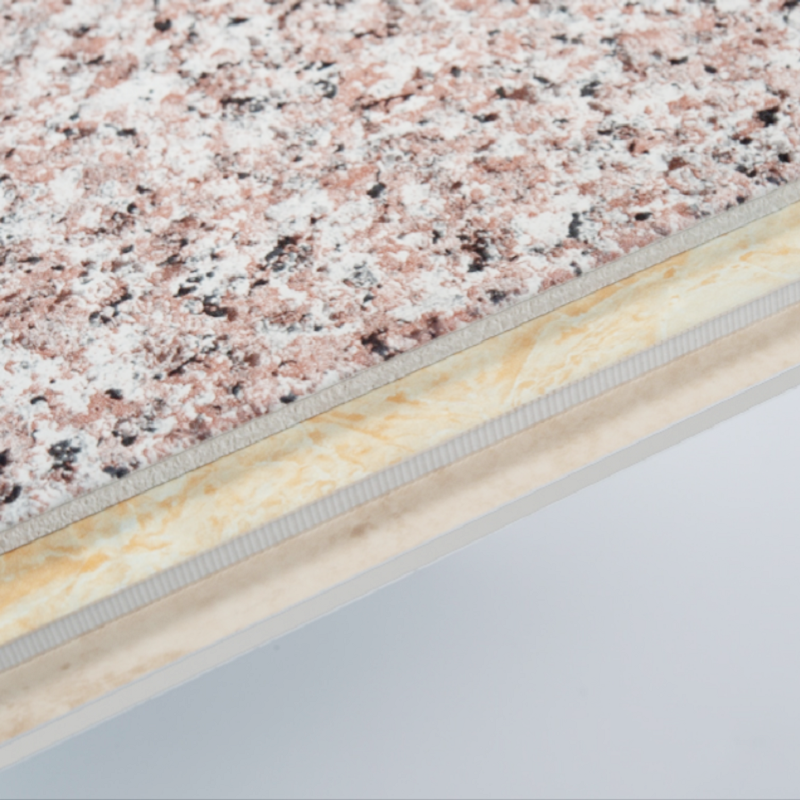

Available in regular color chart options and customizable via RAL or Pantone color codes, the panel allows architects to achieve aesthetic consistency while maintaining fire safety. The surface coatings—PVDF, FEVE, or NANO—offer UV resistance, preventing color fading and ensuring a vibrant appearance over time. Additionally, the panel supports custom sizes and shapes, enabling creative architectural designs, such as curved facades or three-dimensional patterns .
The use of inorganic mineral cores eliminates harmful chemicals and volatile organic compounds (VOCs), aligning with global sustainability goals. The panel’s recyclable aluminum components further reduce its environmental footprint, making it a responsible choice for green building projects.

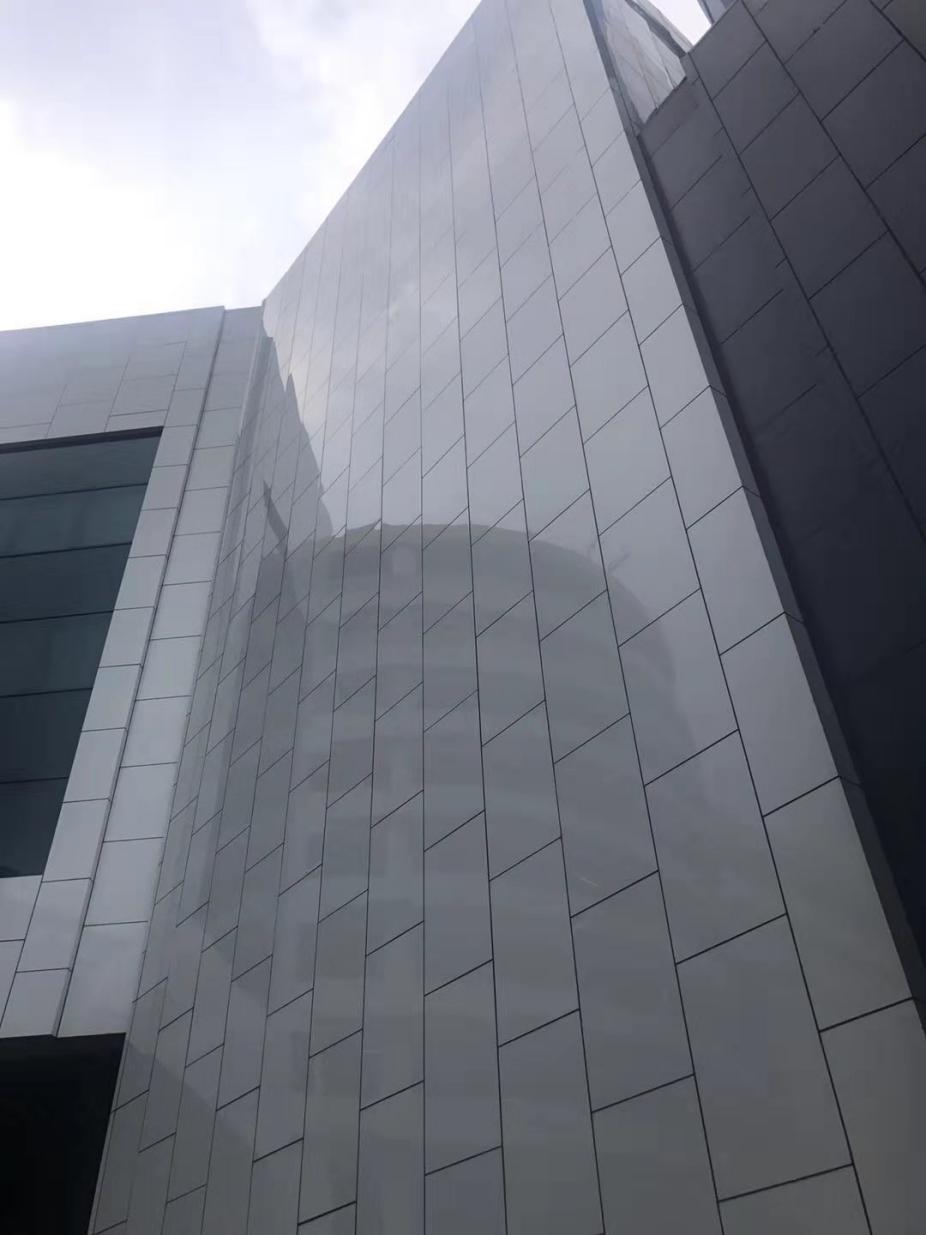

The A2 FR panel is widely used in high-rise buildings, commercial complexes, and public structures where fire safety is paramount. Its A2 fire rating complies with GB 50016-2014 regulations, which require A grade materials for buildings exceeding 50 meters in height . Notable examples include the French Riveria Tower, where A grade fire-resistant aluminum composite panels were used to create a striking, reflective facade while ensuring compliance with strict fire codes .
In hotels, offices, and residential spaces, the panel's fire resistance and design flexibility make it suitable for wall cladding, ceilings, and partitions. Its smooth surface and customizable finishes enhance interior aesthetics while providing a safe environment.
Transport hubs, stadiums, and educational institutions benefit from the panel's fire safety and durability. Its low maintenance requirements and resistance to weathering ensure long-term performance in high-traffic areas.
Factories and warehouses utilize the panel for its fire-resistant properties, protecting critical infrastructure and personnel from potential fire hazards.
Q1: What is the fire rating of the A2 FR panel?
A: The panel achieves an A2 fire rating according to GB 8624 and EN 13501-1:2007, indicating it is non-combustible with minimal heat and smoke release .
Q2: Can the panel be used in high-rise buildings?
A: Yes. Its A2 rating meets the requirements of GB 50016-2014, allowing unrestricted use in buildings of any height .
Q3: What surface coatings are available?
A: Options include PVDF, FEVE, and NANO coatings, each offering superior weather resistance and UV protection .
