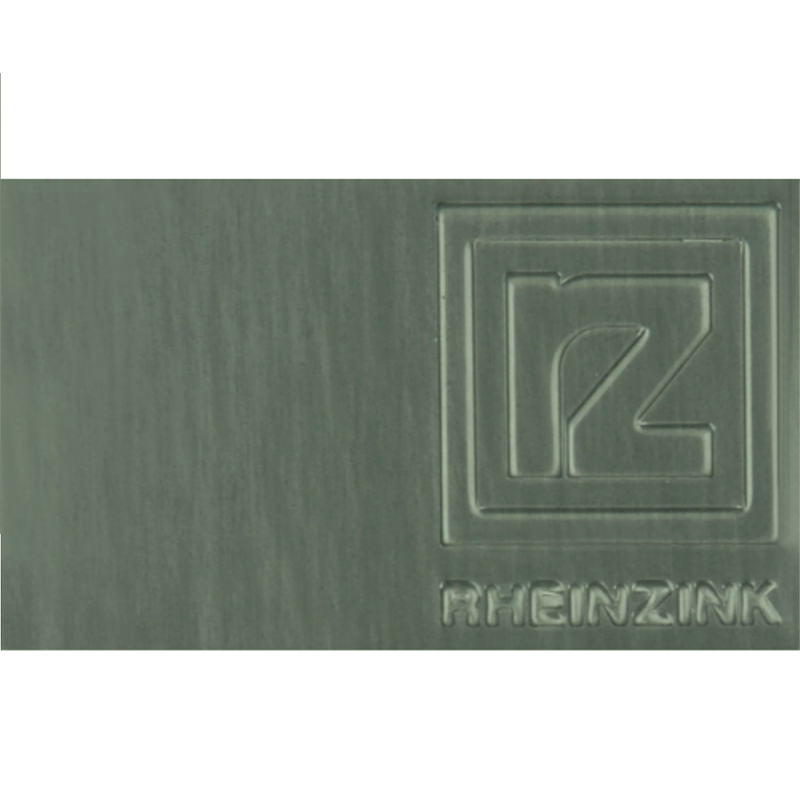

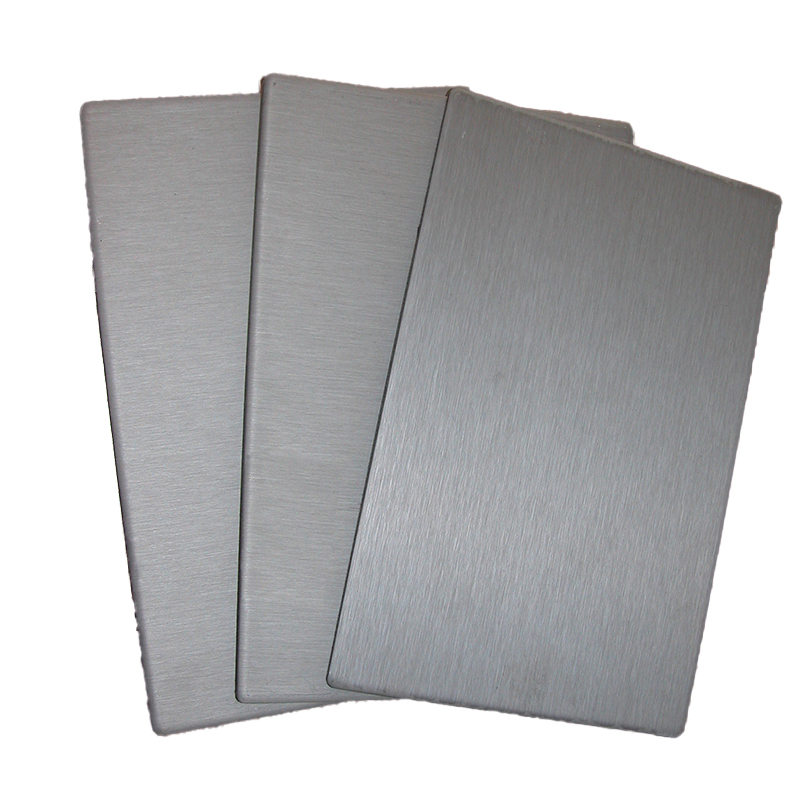

Titanium Zinc Composite Panel Roofing is a high-performance building material combining titanium zinc and aluminium alloys, designed specifically for roofing applications. It integrates the durability of titanium zinc with the lightweight properties of aluminium, making it a reliable choice for both commercial and residential structures. This composite panel is engineered to meet diverse project needs through flexible customization and strict manufacturing standards.
| Width | 980mm |
| Length | On demand |
| Panel Thickness | 3mm~6mm, recommend 4mm |
| Skin Thickness | 0.3mm TZ/0.5mm AL; 0.5mm TZ/0.7mm AL |
| Alloy | Titanium Zinc/Aluminium |
| Surface Treatment | Mill |
| Colors | Refer to Color Chart for more options |
| Others | Accept custom color and sizes |
Available in a fixed width of 980mm, with length customizable on demand to fit specific project requirements.
Panel thickness ranges from 3mm to 6mm, with 4mm recommended for optimal performance. Skin thickness options include 0.3mm TZ/0.5mm AL and 0.5mm TZ/0.7mm AL, ensuring structural stability.
Composed of high-quality titanium zinc and aluminium alloys, balancing corrosion resistance and strength.
Mill finish as a standard option.
PVDF coating: 2-coating with an average thickness of ≥25μm; 3-coating with an average thickness of ≥3μm.
Anodizing: Indoor grades (AA5A with ≥5μm thickness; AA10A with ≥10μm thickness) and outdoor grades (AA15A with ≥15μm; AA20A with ≥20μm; AA25A with ≥25μm).
Customization: Accepts custom colors (refer to the color chart for options) and sizes to match project aesthetics.
Ideal for roofing systems in various settings, including commercial buildings (shopping malls, office towers), industrial facilities, and residential complexes. Its weather resistance and adaptability make it suitable for regions with diverse climatic conditions, from high humidity to extreme temperature variations.
Q: What is the recommended panel thickness for most roofing projects?
A: 4mm is recommended for a balance of durability and weight.
Q: Can the length be adjusted to fit unique project dimensions?
A: Yes, length is available on demand to meet specific requirements.
Q: Are there outdoor-specific surface treatments?
A: Yes, anodizing options like AA15A (≥15μm), AA20A (≥20μm), and AA25A (≥25μm) are designed for outdoor use.
