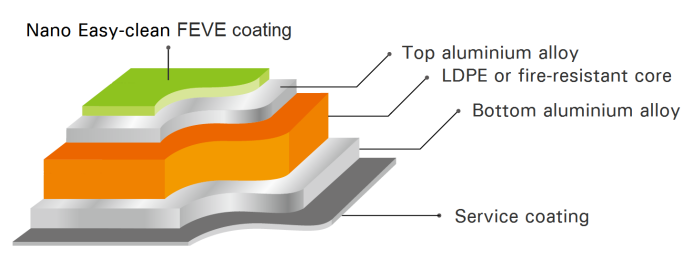

The Nano Coated Aluminum Composite Panel (ACP) is a high-performance building material designed to meet the demands of contemporary construction and design. Comprising two layers of 0.50mm top-grade virgin aluminum sheets (AA3003 alloy) bonded to a core material, this panel is engineered for durability, versatility, and aesthetic appeal. The surface undergoes advanced nano-technology treatments, specifically NANO PVDF and NANO FEVE, which enhance resistance to environmental factors while providing a sleek, long-lasting finish. With widths ranging from 1220mm to 1500mm and lengths customizable up to 5800mm (recommended sizes: 2440mm, 3050mm, 4050mm), the panel thickness spans 3mm to 6mm (recommended 4mm), making it suitable for diverse applications.
Width | 1220mm, 1250mm, 1500mm |
Length | Any size, recommend 2440mm, 3050mm, 4050mm, 5800mm |
Panel Thickness | 3mm~6mm, recommend 4mm |
Alu.Skin Thickness | 0.50mm top-grade, virgin aluminium sheet on each face |
Alu. Alloy | AA3003(Different Grade Available) |
Surface Treatment | NANO PVDF; NANO FEVE; |
Colors | Refer to Color Chart for more options |
Others | Accept custom color and sizes |

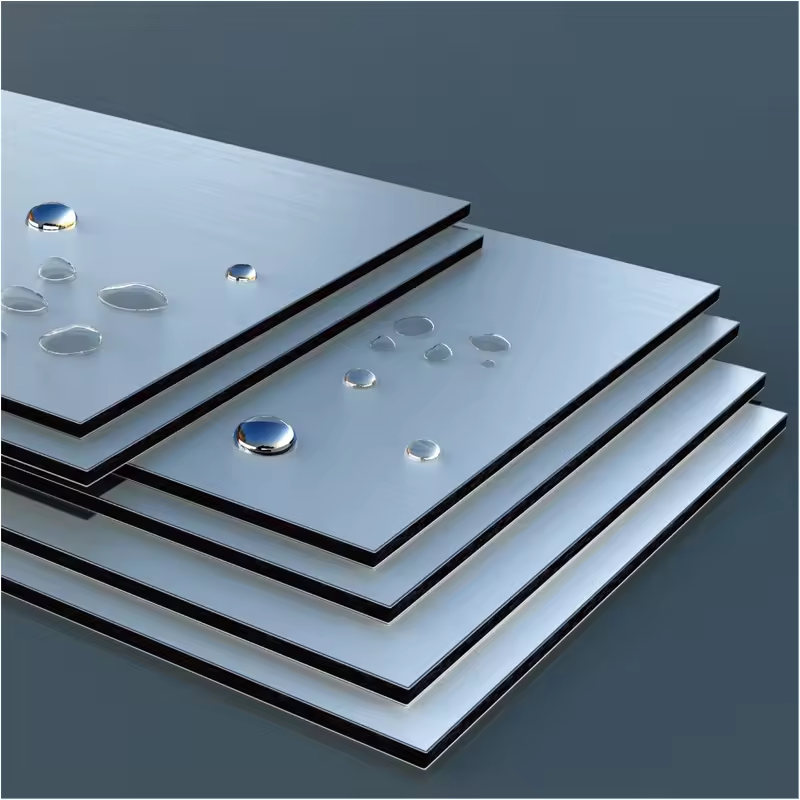

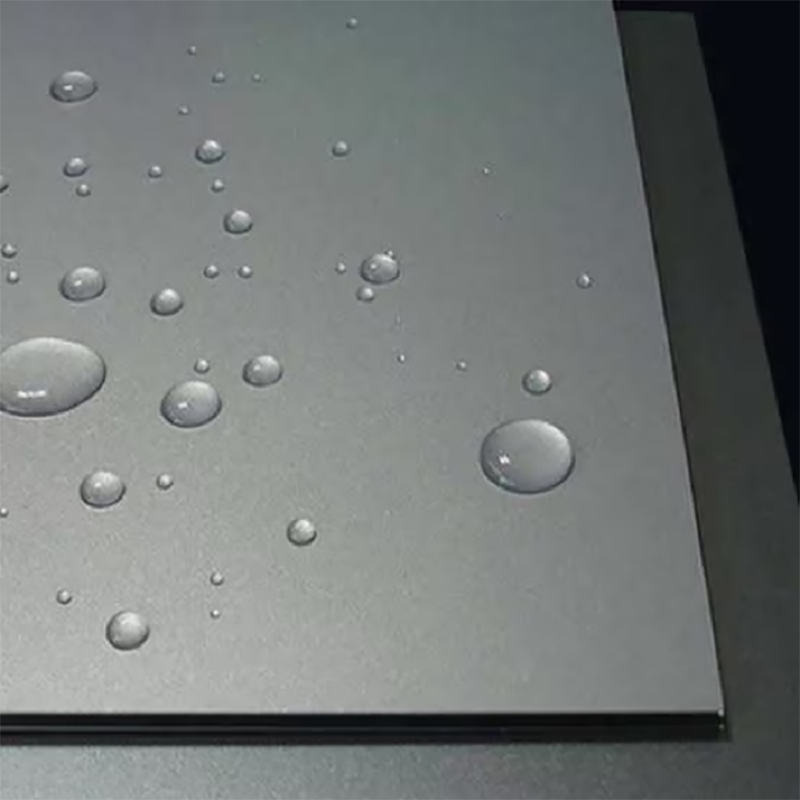

The NANO PVDF and NANO FEVE coatings offer exceptional protection against UV radiation, moisture, and chemical corrosion. PVDF (polyvinylidene fluoride) is renowned for its long-term color stability and resistance to fading, while FEVE (fluorinated ethylene vinyl ether) provides superior gloss retention and optical clarity. These nano-enhanced coatings create a hydrophobic surface that repels dirt and pollutants, reducing maintenance requirements and ensuring a pristine appearance for years.
The panel’s modular design allows for flexibility in size and shape, accommodating both standard and bespoke projects. The AA3003 aluminum alloy core ensures structural integrity while maintaining lightweight properties, enabling easy handling and installation. A wide range of colors and finishes (including metallic, matte, and custom options) are available, allowing architects and designers to achieve unique visual effects.
Constructed with virgin aluminum sheets, the panel exhibits high tensile strength and corrosion resistance, making it ideal for harsh environments such as coastal regions or industrial areas. The AA3003 alloy, known for its rust-proof properties, ensures longevity and reliability even in moisture-prone settings.
The panel’s malleability allows for seamless bending, cutting, and shaping, supporting complex architectural designs, including curved surfaces and intricate patterns. Its lightweight nature reduces labor costs and installation time, while the pre-coated finish eliminates the need for on-site painting.
The nano coatings comply with international environmental standards, minimizing VOC emissions and ensuring eco-friendliness. Additionally, the recyclable aluminum content aligns with sustainable building practices.

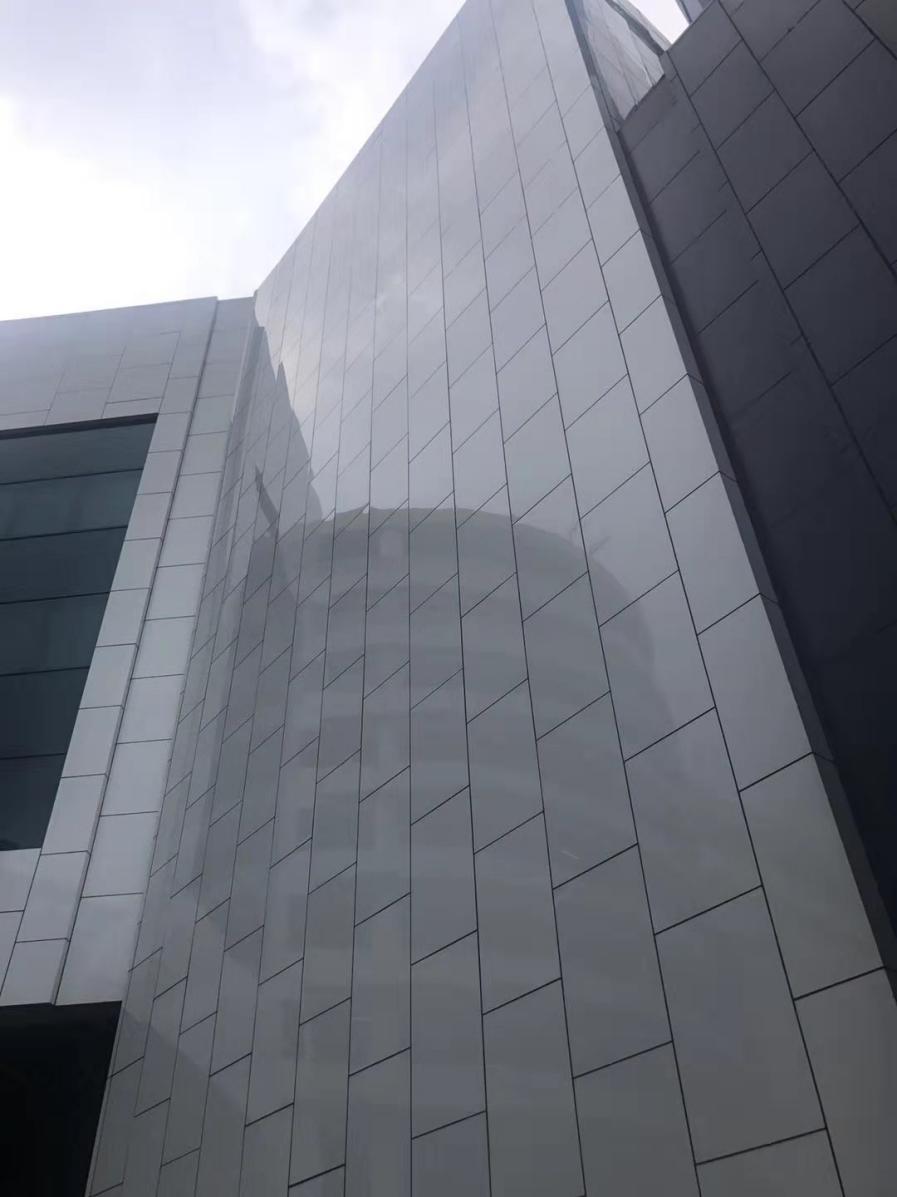

Ideal for curtain walls, cladding, and facades, the panel's weather-resistant properties protect buildings from harsh climates while enhancing curb appeal. Its thermal efficiency also contributes to energy savings.
Used for ceilings, partitions, and decorative panels, the panel's smooth surface and customizable colors create modern, cohesive indoor spaces. Its sound-dampening properties further improve acoustic comfort.
The panel's flat, durable surface is perfect for mounting large-scale signage, billboards, and displays. The nano coatings ensure vibrant colors remain intact under prolonged sunlight.
Applied in bus shelters, railway stations, and airport terminals, the panel's lightweight design and corrosion resistance make it suitable for high-traffic, outdoor structures.
Q1: What is the difference between NANO PVDF and NANO FEVE coatings?
A1: NANO PVDF excels in extreme weather conditions, offering superior UV resistance and color retention. NANO FEVE provides a high-gloss finish with excellent optical clarity, making it ideal for applications requiring premium aesthetics.
Q2: Can the panel be customized for unique projects?
A2: Yes. The panel supports custom sizes, colors, and finishes. Architects can also request special shapes (e.g., curved panels) to meet design specifications.
Q3: How is the panel installed?
A3: Installation is straightforward using mechanical fasteners or adhesive systems. The lightweight design reduces labor complexity, and pre-cut panels minimize on-site waste.
Q4: What maintenance is required?
A4: The nano coatings' self-cleaning properties reduce dirt accumulation. Routine cleaning with mild soap and water is sufficient to maintain its appearance.
