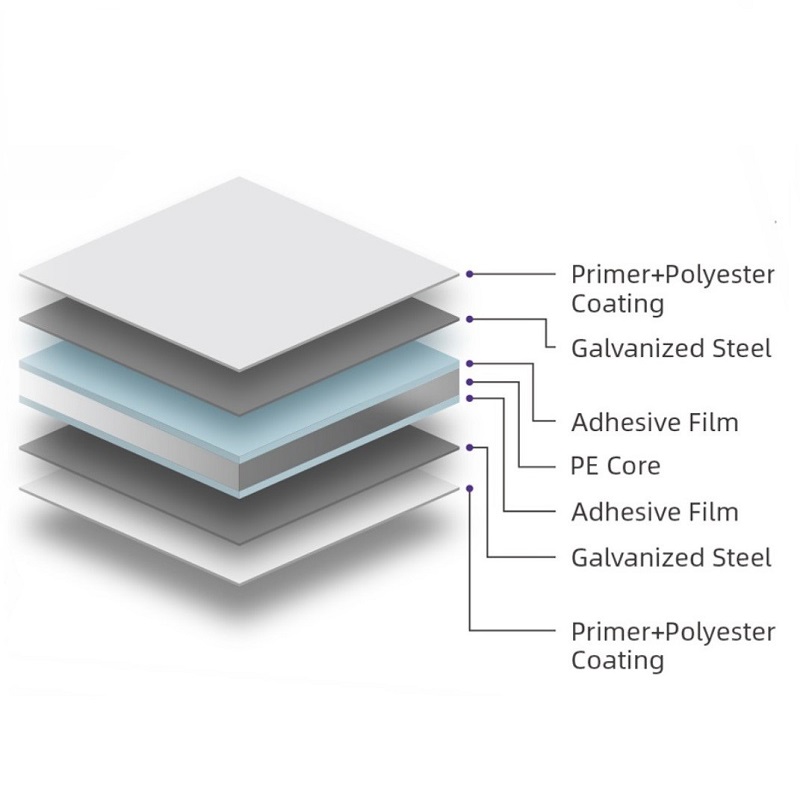

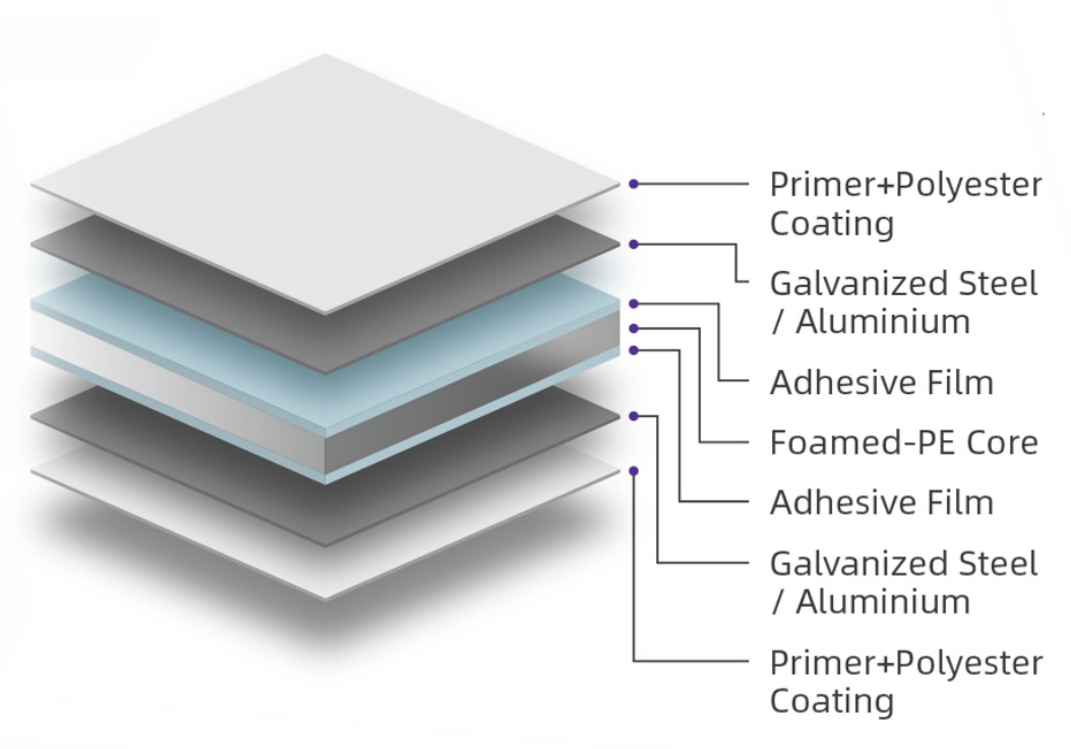

Structural Galvanized Steel Composite Panel is a kind of composite panel that combines galvanized steel with other materials through a sophisticated manufacturing process, forming a sturdy and reliable building material. This integration of materials is achieved by bonding galvanized steel sheets with a core material, which undergoes strict quality control to ensure consistent performance. It is designed to meet various structural and decorative needs in construction projects, providing a balance between structural stability and functional performance. The galvanization process adds a protective layer to the steel, enhancing its resistance to rust and corrosion, thus extending the overall service life of the panel in different environmental conditions.
ITEM | PERFORMANCE | |
3×0.2/0.2MM | 4×0.3/0.3MM | |
Peel-off Strength | ≥4.0N/mm | ≥4.0N/mm |
Density | 6.4kg/m² | 8..5kg/m² |
Bend Strength | ≥125MPa | ≥130×10-4MPa |
Bend Modulus of Elasticity | ≥3.2×10-4MPa | ≥3.5×10-4MPa |
Penetration Resistance | ≥18kN | ≥22kN |
Share Strength | ≥58MPa | ≥68MPa |
Thermal deformation Temperature | ≥105℃ | ≥105℃ |
Thermal Expansivity | ≤1.8×10-5/℃ | ≤1.8×10-5/℃ |
Boiling Water | No Change | No Change |
Temp Difference Resistance | No Change | No Change |
Same Rigidity as Steel Sheet | 2.0mm | 3.0mm |
Fire Retardant | B1 | B1 |
The panel offers a range of width options including 1220mm, 1250mm, and 1500mm. For length, it can be customized to any size, with recommended lengths being 2440mm, 3050mm, 4050mm, and 5800mm, allowing flexibility in different construction scenarios. This wide range of dimensions means that the panel can be easily adapted to both small-scale renovation projects and large-scale commercial construction, reducing the need for excessive cutting and minimizing material waste.
The panel thickness ranges from 3mm to 6mm, with 4mm being the recommended option, ensuring sufficient strength while not adding excessive weight. This thickness range is carefully determined based on extensive structural testing, ensuring that the panel can withstand typical loads encountered in building applications without compromising on installation efficiency.
Each face of the panel is covered with a 0.50mm top-grade, virgin aluminium sheet of AA3003 alloy (other grades are available), enhancing the panel's durability and resistance to external factors. The use of virgin aluminium ensures that there are no impurities that could affect the performance of the skin, and the AA3003 alloy is chosen for its excellent formability and corrosion resistance.
It adopts NANO PVDF and NANO FEVE surface treatments, which contribute to better weather resistance and a longer service life. These advanced surface treatments form a protective barrier that shields the panel from the damaging effects of sunlight, rain, and pollutants, maintaining its appearance and structural integrity over time.
The panel accepts custom colors and sizes, enabling it to fit specific project requirements. This customization extends to color matching with architectural designs, ensuring that the panel not only performs well but also complements the aesthetic of the building.
| Width | 1180mm, 1200mm |
| Length | On demand |
| Panel Thickness | 3mm~6mm, recommend 4mm |
| Skin Thickness | 0.15mm~0.50mm, recommend 0.2mm, 0.30mm and 0.40mm; |
| Alloy | Galvanized Steel |
| Surface Treatment | PVDF/FEVE/PE |
| Colors | Refer to Color Chart for more options |
| Others | Accept custom color and sizes |
This panel is widely used in various construction projects. It can be applied to external walls of buildings, providing a strong and protective outer layer that can withstand harsh weather conditions such as strong winds and heavy rains. It is also suitable for roofing systems, offering structural support and weatherproofing, ensuring that the interior of the building remains dry and protected. Additionally, it finds use in partition walls within industrial and commercial buildings, where it provides both structural separation and sound insulation. Furthermore, it is commonly utilized in the construction of warehouses and workshops where structural stability is crucial, as it can bear the weight of equipment and stored goods without deformation.
Q: Can the length of the panel be adjusted according to specific project needs?
A: Yes, the length can be any size, and we recommend several common lengths, but customization is available to meet specific requirements. Our manufacturing process allows for flexibility in length, ensuring that the panel fits perfectly into the design of the project without the need for unnecessary modifications.
Q: What is the advantage of using NANO PVDF surface treatment?
A: NANO PVDF surface treatment enhances the panel's resistance to ultraviolet rays, chemicals, and weathering, ensuring a longer lifespan and maintaining its appearance over time. The nano-scale particles in the treatment create a more dense and uniform protective layer, which is more effective at blocking harmful elements compared to traditional surface treatments.
Q: Is the aluminum skin easy to be damaged?
A: The aluminum skin used is top-grade and virgin, with a thickness of 0.50mm, which provides good resistance to damage under normal usage conditions. It is designed to withstand minor impacts and abrasions that may occur during installation and daily use. However, like any material, excessive force or sharp objects can cause damage, so proper handling is recommended.
Q: How does the galvanized steel contribute to the panel's performance?
A: The galvanized steel core provides the panel with high structural strength, making it capable of bearing heavy loads. The zinc coating on the steel prevents rust and corrosion, ensuring that the core remains strong and stable over time, even in humid or corrosive environments.
